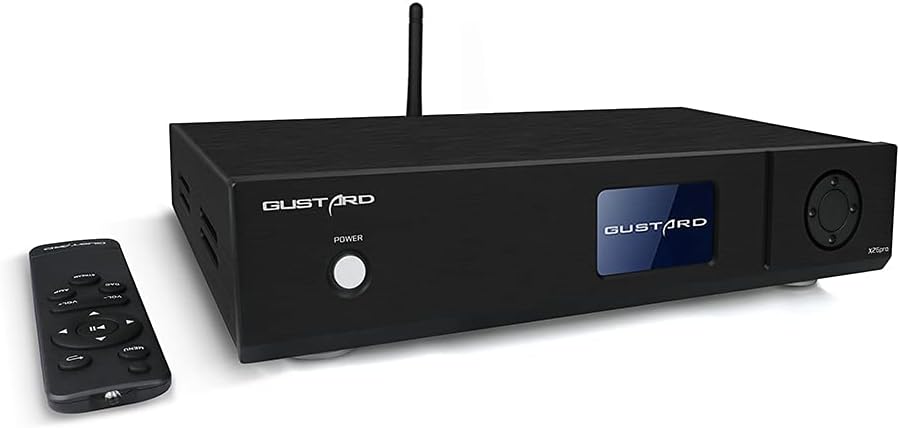

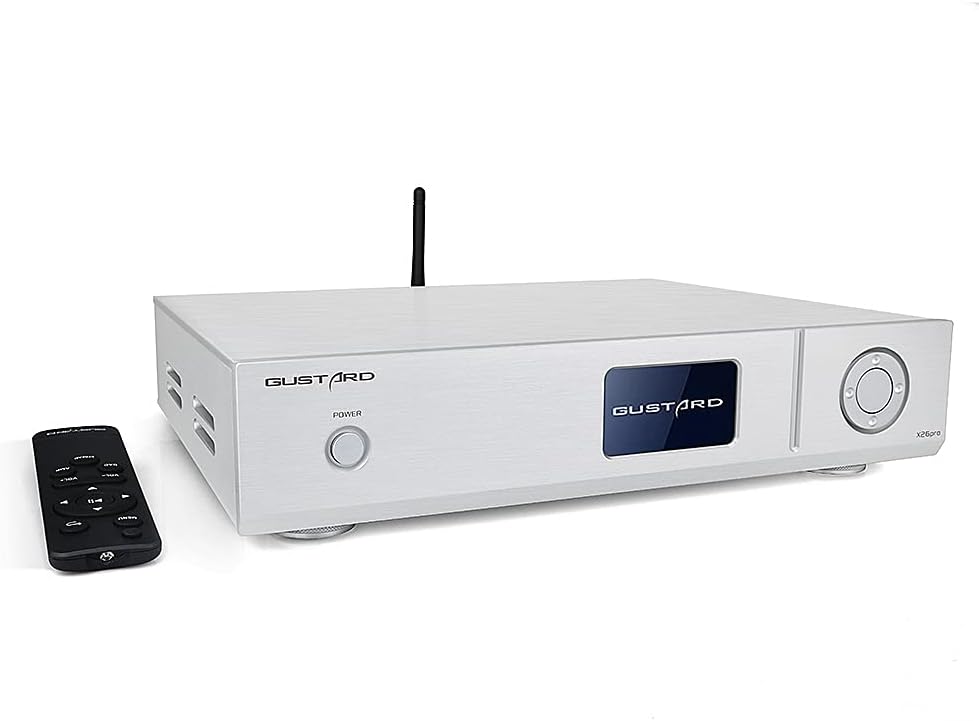

Full-Balanced MQA DAC Dual ES9038PRO Black W995791
Full-Balanced MQA DAC Dual ES9038PRO Black W995791
♬ Various Input and Output Mode: Gustard X26 Pro with USB/IIS/AES/Coaxial/Optical/Bluetooth 5.0(CSE8675)input mode; with RCA and XLR out to meet different needs. USB input support decoding MQA.
♬ Ultra-low Noise K2 Clock Synthesizer：Abandon the front-end clock source, DAC only uses local femtosecond clock or external 10M constant temperature clock source synthesis as the main clock. Therefore, the impact of the front-end signal source clock performanceon the decoding link is greatly reduced.USB/IIS/AES/Coax/Opt/BT interface can also enjoy theperformance improvement brought by the synthesizer.
♬ CPLD Programmable Logic Chips：Self-constructed digital integrated circuits with logic functions, clock management, 2nd PLL, digital shaping, DOP decoder, PCM/DSD depop switch and other exclusive technologies have laid a solid foundation for excellent sound quality.
♬ DSP Digital Filtering：The solution is a high-performance digital filter solution developed on the Analog Device SHARC digital audio dedicated DSP platform.It is equipped with a self-developed high-performance anti-aliasing noise algorithm，which achieved better sound quality performance.
Gustard DAC-X26 Pro Hifi Bluetooth 5.0 MQA DAC USB/Coaxial/Optical/IIS DAC 2 x ES9038PRO K2 Clock Synthesizer DSD512 PCM768KHz Class A DAC with Remote Control
Main Features
♬USB Input support decoding MQA.
♬ Synchronous Clock Implanation Technology
♬ Independent R&D of DSP Digital Filter
♬ K2 Clock Synthesizer Built-in
♬ Bluetooth 5.0/USB/Coaxial/Optical/IIS
♬ Dual ES9038PRO Chips
♬ Full Funtion Rmote Control
Product Specifications
Sample rate supported by digital input channels:
COAX: PCM 16-24bit/44.1-192kHz; DSD DOP64
AES: PCM 16-24bit/44.1-192kHz; DSD DOP64
OPT: PCM 16-24bit/44.1-192kHz; DSD DOP64
USB: PCM 16-32bit/44. 1-768kHz; DSD DOP64-DOP256; NATIVE DSD: DSD64-DSD512
IIS: PCM 16-32bit/44. 1- 768kHz; DSD DOP64- -D0P256; NATIVE DSD: DSD64 -DSD512
BT Bluetooth 5.0: PCM LDAC, AAC, SBC, APTX, APTX LL, APTX HD and other high frequency encoding, LDAC can achieve 24B / 96K high code transmission
*USB input supported operating system: Win7 SP1/Win8/Win10 32-64bit; mac0S; Linux
Analog output performance:
Amplitude frequency response: 20-20kHz /±0.1dB.
SNR: >128dB
Crosstalk: -140dB@1kHz
THD+N: ≤0. 0001%@1kHz
IMD: <0. 0006% @-1dBFs
RCA 0utput level: 2. 5Vrms (Volume 00dB)
Output impedance 100 ohms
XLR Output level: 5Vrms ((Volume 00dB)
Output impedance 100 ohms
Other specifications:
AC Power supply: AC 115V/230V 50/60Hz
Power consumption: <60W
Dimensions: Width 330mm * Height 65mm * Depth 260mm (Excluding protrusions)
Weight: 7.5Kg (including packaging)
Fuse information inside the machine: Size: 5*20; Fuse: 2-3A
Gustard's remote control is universal. Long press the 'DAC' button on the remote control to remotely control X16, A18, X26pro. Long press the 'AMP' button for 5 seconds to remotely control H16, P26.
